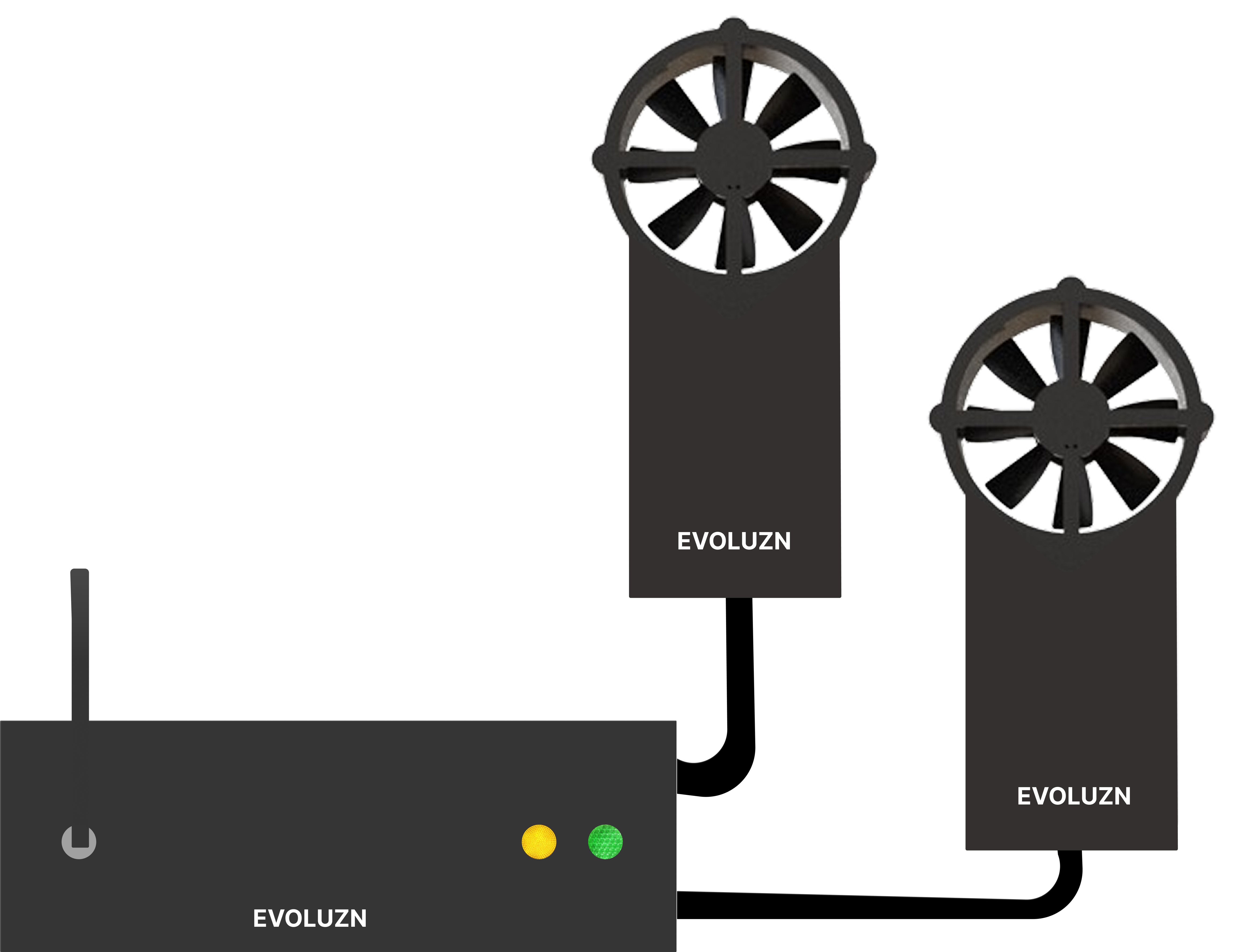

INTELLIZENS SMART ANEMOMETER

Accurate airflow measurement with intelligent monitoring.

USE CASE

Real-time AHU airflow measurement and filtration health monitoring to protect high-dust environments by detecting filter degradation and ventilation imbalances early, preventing failures in cement, chemical, and pharmaceutical manufacturing.

BENEFITS:

  • Reduces unplanned downtime and maintenance expenses.
    •
  • Improves energy efficiency and extends equipment life.
    •
  • Provides actionable airflow and power consumption insights for sustainable facility operations.
KEY FEATURES
SPECIFICATIONS

KEY FEATURES

Programmable scheduling reduces energy usage by operating only when needed.

Over-temperature protection extends device lifespan by preventing overheating.

Remote monitoring and control via web and mobile dashboards enable instant system visibility.

Built-in power tracking and reporting support efficient energy management.

Rugged design with extended sensor reach for demanding industrial environments.

Smart Advantages

Delivers precise airflow measurement combined with smart scheduling, real-time alerts, and power efficiency tracking. Designed for durability and connectivity, it ensures reliable performance in industrial, HVAC, and cleanroom applications.

SPECIFICATIONS

Measurement Range 0–9999 CFM
Wind Speed Units Feet per minute (FPM) / Meters per second (m/s)/ Cubic Feet per Minute (CFM)
Accuracy ±3% or ±0.1 m/s (whichever is greater)
Sensor Extension 0.5 m flexible probe for hard-to-reach areas
Input VoltageAC 100V–240V, 50/60Hz
ConnectivityLoRaWAN / Wi-Fi / Ethernet
Control Features Scheduling, Remote ON/OFF, Auto Temperature Shutdown
Data Reports Airflow, Power Consumption, and Runtime Analytics
AlarmsCustomizable Min/Max Speed Alerts with visual and audible indications
Display 10.1-inch HMI screen with Edge Computer or 4.3-inch HMI screen(optional)
Housing Rugged industrial over-mold enclosure, IP54 Rated
Data Logging Cloud-based storage with graphical trend viewing
